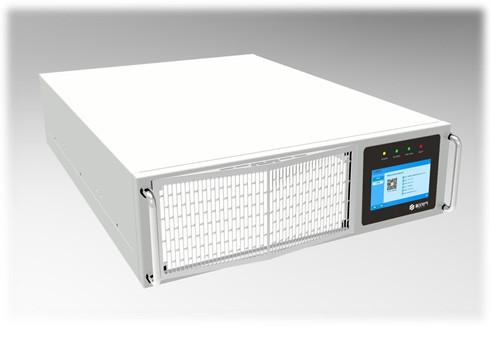

30 KW Wide voltage range AC DC bidirectional group series energy storage converter

ANE Series Energy Storage Converters can conveniently realize multi-equipment parallel networking to form small and medium-sized energy storage system, which has the characteristics of flexible layout, convenient installation and convenient maintenance, and is especially suitable for distributed energy storage application scenarios and general industrial and commercial customer applications.

Features

• With its own monitoring system, touch screen can be external, can be convenient to build a small energy storage system.
• Wide DC voltage design: 200V ~ 900V, can charge and discharge in the range of 280V ~ 900V.
• Adaptable to a variety of grid voltages: AC 220V/230V/240V/380V/400V/415V
• Can be used off-grid, with strong load adaptability, perfect for all types of load, including half-wave load, impact load.
• Perfect Matching Power Battery Cascade Utilization Application Scene.

Specifications

Solutions of Group and Series Energy Storage Converter

Distributed Energy Storage Solution

ANE innovative distributed energy storage solutions are incomparable solutions for energy storage in general industrial and commercial applications.

The core of the scheme is distributed energy storage cabinet, which is composed of Group Strings energy storage converter and high energy density battery pack, and can be distributed in the distribution room nearby, and can realize centralized control and unified deployment through wireless communication.

At present, there are some pain points in the application of energy storage industry, such as safety concerns, profit difficulties, engineering load, layout constraints. ANE innovative distributed energy storage solution has thoroughly solved the above pain points.

Cascade Battery Utilization Solution

• One channel connected to one battery cluster, One channel connected to two battery clusters, One channel connected to three battery clusters, direct matching of cascade battery packs by NESI-30K wide voltage Group Strings PCS (DC voltage range 200-900V), without unpacking battery pack and series-parallel connection of battery packs.
• Centralized control of multiple 30kW with two-stage topology PCS AC side in parallel.

This scheme greatly reduces the difficulty of power battery cascade utilization and has excellent economy performance.

Energy storage and backup UPS solution

• Energy storage backup UPS usually cuts the peak and fills the valley, and supplies power to the equipment replacing the online UPS protection when the city power is abnormal.
• Reduces lead-acid battery usage in online UPS.
