| Brand Name : | SINY Energy |
| Model Number : | NESI-105KR1-1P |
| Certification : | CE,G59 |
| Price : | Exwork: 6,000~9,000 USD |
| Payment Terms : | T/T |
| Supply Ability : | 200 Per month |
| Delivery Time : | 45 Work days |
Product Overview

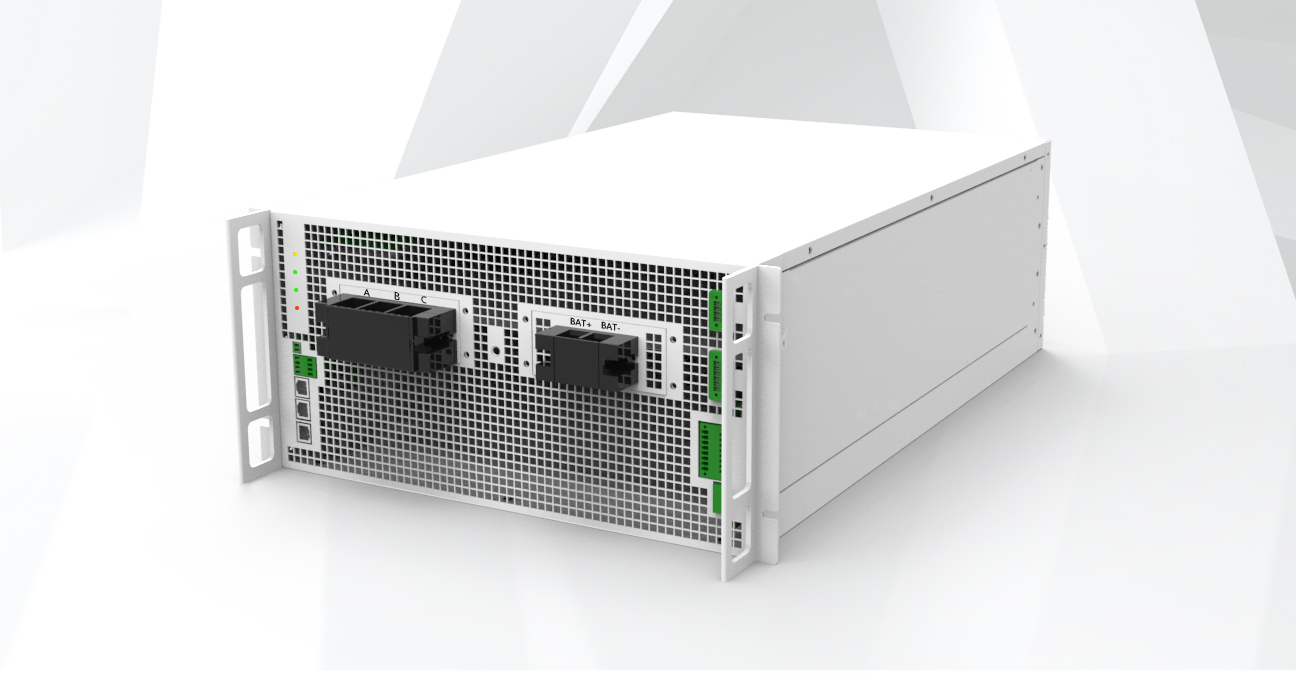

The 105kW on-grid and off-grid group series type energy storage
converter is a single branch standard rack type product. It can be
used in a variety of grid-connected and off-grid application
scenarios, such as emergency power backup, mobile energy storage,
transformer capacity expansion in platform area, peak-load
shifting, or dynamic capacity increase, etc. At the same time, it
can rapidly expand capacity according to user requirements, and
conveniently realize the parallel networking of multiple devices to
form a small and medium-sized energy storage system. Can be used
independently off-grid, with strong load applicability; the power
grid has strong adaptability and excellent usability; Easy
integration, single module and a cluster of conventional standard
batteries on the market to form a standardized 0.5C energy storage
system, to achieve fine management of batteries.
Features

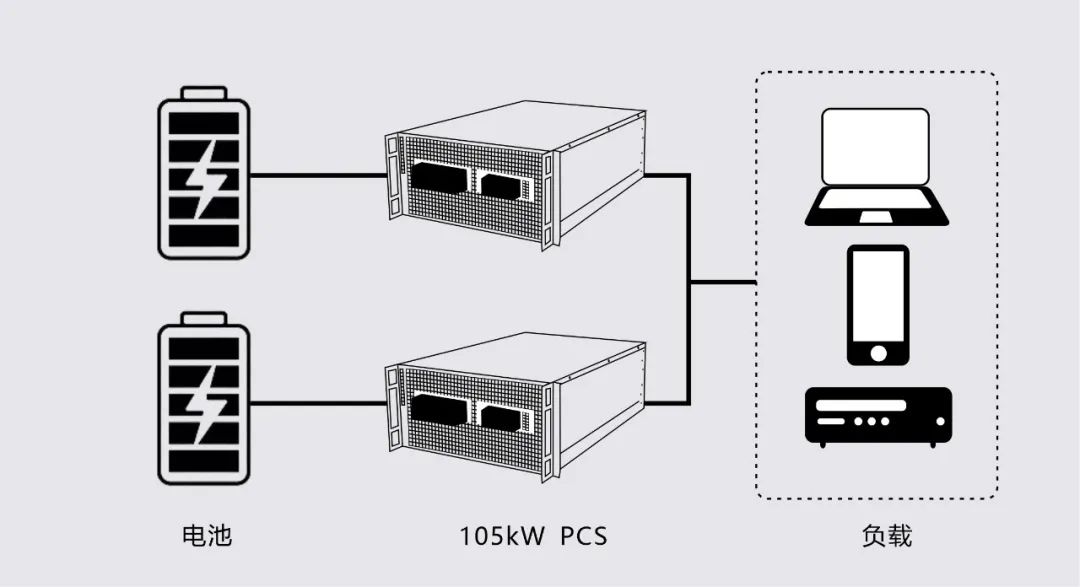

Convenient multi-equipment grid connection; The multi-branch
high-power energy storage system can be formed by multiple PCS in
parallel.
The standard rack design can be perfectly combined with the
lithium battery cabinet to form a distributed energy storage
cabinet.
High power density, small size, easy handling, two people can be
installed by hand
Three level design, low harmonics, good power quality.
Can be off-grid use, independent inverter for load.
Product specification
| Model | NESI-105KR1-1P | |
DC side parameters | Voltage range | DC600V~DC900V |
| Rated power | 105kW | |
| Maximum current | 175A | |
| Number of DC channels | 1 | |
AC grid-connection parameters | Grid type | 3L+PE |
| Rated power | 105kW | |
| Rated voltage | AC380V/400V | |
| Rated current | 159A | |
| Voltage range | -15% ~ +15% | |
| Rated frequency | 50Hz/60Hz | |
| Frequency range | Rated frequency±3Hz | |
| Power factor | -1~+1 | |
| Output harmonic | ≤ 3% | |
| wiring | 3L+PE | |
| Rated power | 105kW | |
| AC off-grid parameters | Rated voltage | AC380V/400V |
| Rated frequency | 50Hz/60Hz | |
| Maximum current | 159A | |
| Output harmonic | 3%@ linear full load | |
| Dynamic response | 60ms@100% Linear load | |
| Unbalanced load capacity | 100% | |
| Overload capacity | Overload≤110%, run ≥10min; Overload [110%~120%], run ≥ 1min | |
System parameter | Rated frequency | 50Hz/60Hz |
| Frequency accuracy | ±0.1HZ | |
| Voltage accuracy | 1% | |
| Voltage range | -15% ~ +15% | |
| Maximum efficiency | 98.2% | |
| Grid-connected and off-grid switching | Manual | |
| Working temperature | -25℃～55℃(Derating when temperature is above 45 °C) |
| Storage temperature | -40℃～70℃(No battery) | |
| Relative humidity | 5％RH ~ 95％ RH ,No condensation | |
| Working altitude | When the temperature is 45 °C, derating is not required for 2000m. Derating ranges from 2000m to 4000m | |
| Noise | ＜68dB | |
Communications and | Communication interface | RS485,CAN, LAN, REPO, ETHERNET |
| Communication protocol | CAN, ModBus TCP, ModBus RTU | |
| Installation | Rack type | |
| Highest efficiency | 97.1% | |
EMC | Class A | |
| Certification | CE,G59,CQC,TUV mark | |
| Isolation method | No isolation | |
| Protection grade | IP20 | |
| Cooling way | Air cooling, intelligent fan speed control | |
| Size (W*H*D) | 483*220*728mm | |
|
|
